Deband for videoplayers
- Dreamject
-
Topic Author
- Offline
Less More
1 year 10 months ago - 1 year 10 months ago #1 by Dreamject
4.1.1 was created by Dreamject
Hello, Crosire, I wrote in github in some of your project, cause reshade does not have issues
Can you port deband to hlsl for videoplayers? It works better and more stable than MadVR, at least on intel HD4000 - madvr+SVP are not friendly with this card and it glitches and overload on 1080p. It saves more details than SVP or can make gradients smother than it.
Now reshade is not native solution for players and it's still not stable at least in potplayer when it should play next file - picture freezes until I relaunch reshade (with pressing stop/play button). Also, I hope native solution gives better perfomance - without SVP one file in mpv (with same deband glsl) loads GPU ~40%, on potplayer+reshade it loads gpu ~50%. With 2x SVP+reshade i get ~85-90% loading, but in full-length cinema gpu overheats and starts drop frames
Thanks anyway

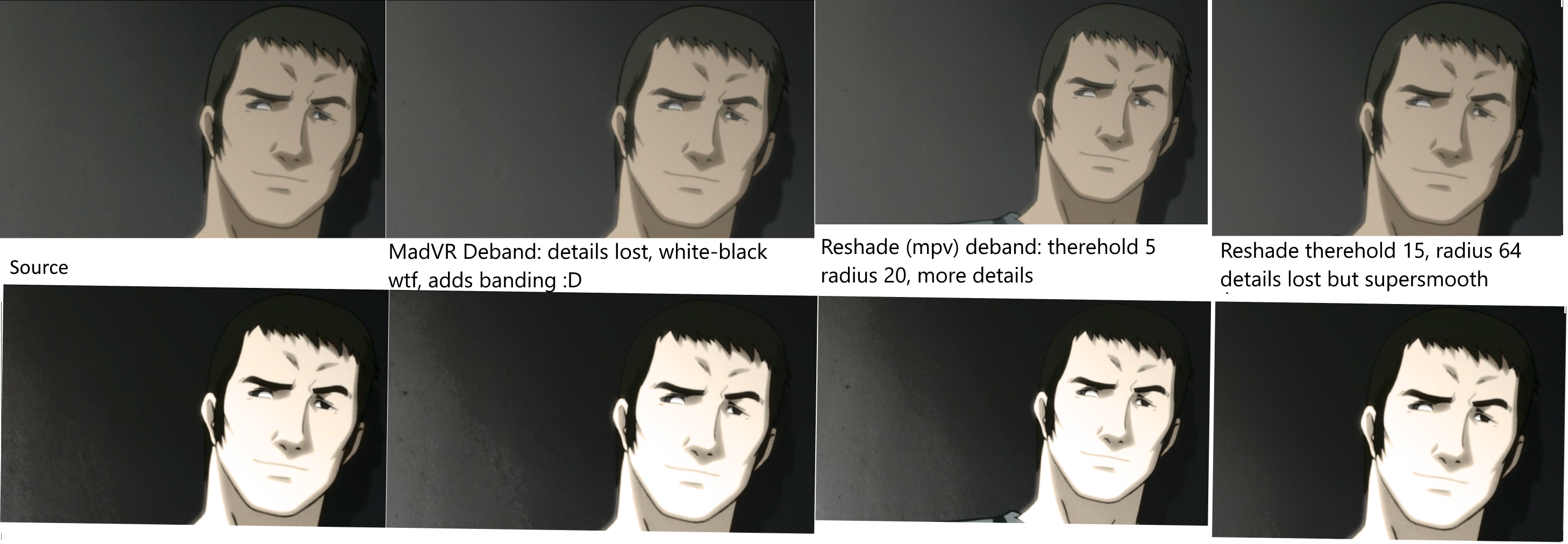

Below there is comparison, sorry for multimessages, forum says 'too many link', so I should separate it

Can you port deband to hlsl for videoplayers? It works better and more stable than MadVR, at least on intel HD4000 - madvr+SVP are not friendly with this card and it glitches and overload on 1080p. It saves more details than SVP or can make gradients smother than it.

Now reshade is not native solution for players and it's still not stable at least in potplayer when it should play next file - picture freezes until I relaunch reshade (with pressing stop/play button). Also, I hope native solution gives better perfomance - without SVP one file in mpv (with same deband glsl) loads GPU ~40%, on potplayer+reshade it loads gpu ~50%. With 2x SVP+reshade i get ~85-90% loading, but in full-length cinema gpu overheats and starts drop frames
Thanks anyway
Below there is comparison, sorry for multimessages, forum says 'too many link', so I should separate it
Last edit: 1 year 10 months ago by Dreamject.
Please Log in or Create an account to join the conversation.
- Dreamject
-
Topic Author
- Offline
Less More
- Posts: 14
1 year 10 months ago #2 by Dreamject
Replied by Dreamject on topic 4.1.1
Please Log in or Create an account to join the conversation.
- Dreamject
-
Topic Author
- Offline
Less More
- Posts: 14
1 year 10 months ago #3 by Dreamject
Replied by Dreamject on topic 4.1.1
Please Log in or Create an account to join the conversation.
- Dreamject
-
Topic Author
- Offline
Less More
- Posts: 14
1 year 10 months ago #4 by Dreamject
Replied by Dreamject on topic 4.1.1
Please Log in or Create an account to join the conversation.
- mbah.primbon
-
- Offline
Less More
- Posts: 36
1 year 10 months ago #5 by mbah.primbon
Replied by mbah.primbon on topic 4.1.1
Hello there Dreamject.
I've ported the debanding filter shader to the MPC-HC from years ago.
www.mediafire.com/file/oi5iyka8xpbbci1/Debanding.hlsl/file
I've ported the debanding filter shader to the MPC-HC from years ago.
www.mediafire.com/file/oi5iyka8xpbbci1/Debanding.hlsl/file
The following user(s) said Thank You: Dreamject
Please Log in or Create an account to join the conversation.
- Dreamject
-
Topic Author
- Offline
Less More
- Posts: 14
1 year 10 months ago #6 by Dreamject
Replied by Dreamject on topic 4.1.1
Great, thanks a lot, I should test it) I though moderators just deleted my messages)
Please Log in or Create an account to join the conversation.
- Dreamject
-
Topic Author
- Offline
Less More
- Posts: 14
1 year 10 months ago #7 by Dreamject
Replied by Dreamject on topic 4.1.1
By the way. is this correct? I don't get hlsl/glsl syntax and not coder, but... Why devide does not uses in hlsl (as I read really, hlsl prefers multiplikation, but it's compiler headache).
Like
glsl
float rand(float x) { return fract(x / 41.0); }
hlsl
float rand(float x) { return frac(x * 0.024390243); }
As I know, pseudorandom can be better (in script clock (p0[3]) ), but I do not know what it actually does.
Also, script works only in evr-cp, usually mpc-compatible shaders like SweetFX's ending like
return colorInput;
}
/* --- Main --- */
float4 main(float2 tex : TEXCOORD0) : COLOR {
float4 c0 = tex2D(s0, tex);
c0 = CurvesPass(c0);
return c0;
}
And they works in any render
Deband's hlsl's ending is just
}
return float4(col, 1.0);
}
Anyway, shader works
Like
glsl
float rand(float x) { return fract(x / 41.0); }
hlsl
float rand(float x) { return frac(x * 0.024390243); }
As I know, pseudorandom can be better (in script clock (p0[3]) ), but I do not know what it actually does.
Also, script works only in evr-cp, usually mpc-compatible shaders like SweetFX's ending like
return colorInput;
}
/* --- Main --- */
float4 main(float2 tex : TEXCOORD0) : COLOR {
float4 c0 = tex2D(s0, tex);
c0 = CurvesPass(c0);
return c0;
}
And they works in any render
Deband's hlsl's ending is just
}
return float4(col, 1.0);
}
Anyway, shader works
